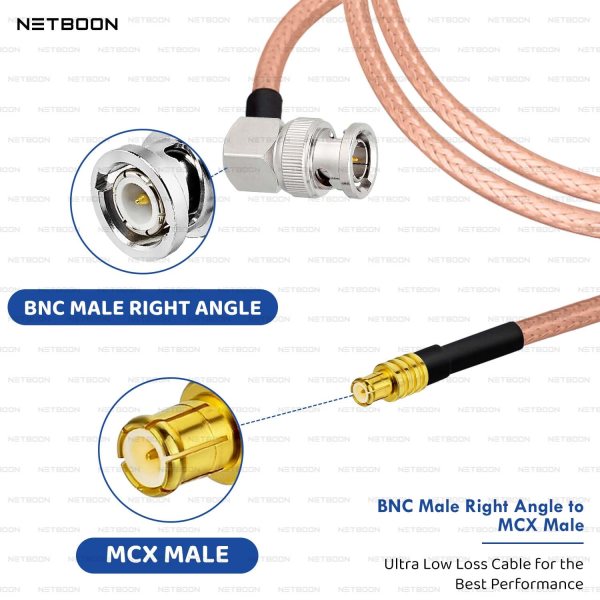

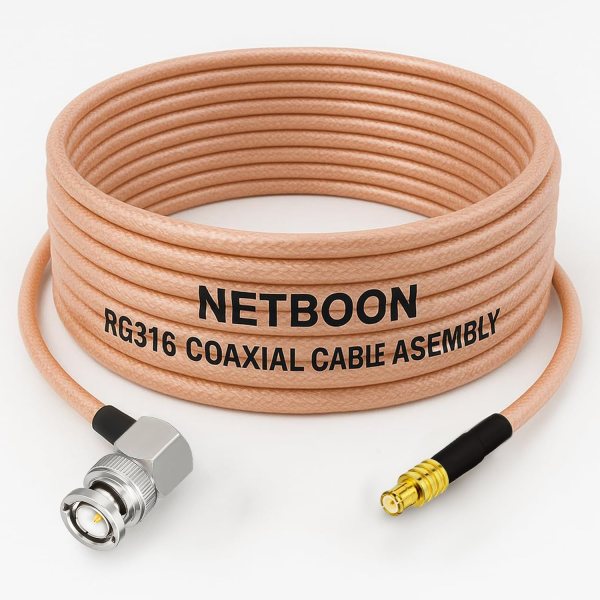

RG316 Coaxial Cable Assembly with BNC Male Right Angle to MCX Male Connector | Compact RF Jumper for Wireless Modules, Routers, and Test Instruments

The NETBOON RG316 Coaxial Cable Assembly with BNC Male Right Angle to MCX Male Connector is expertly designed for high-frequency RF signal transmission in compact and constrained environments. Crafted with durable and flexible RG316 cable, this assembly ensures low signal loss and long-term reliability even under demanding conditions. The right-angle BNC male connector allows for hassle-free installation in tight spaces, while the MCX male end is ideal for miniature RF devices, embedded systems, and communication modules.

Whether you’re performing RF testing, extending connectivity for wireless routers, or integrating IoT communication systems, this jumper cable delivers secure, high-performance signal transmission. It supports a frequency range of DC to 6 GHz, making it versatile across a wide variety of RF and wireless communication applications.

---

✅ Key Features

• ✔️ BNC Male Right Angle to MCX Male Connector for tight-space RF setups

• ✔️ Built with high-quality RG316 coax for minimal signal attenuation

• ✔️ Supports up to 6 GHz frequency range for wide application compatibility

• ✔️ PTFE insulation and braided shielding for durability and interference protection

• ✔️ Ideal for embedded boards, Wi-Fi modules, SDRs, and GPS systems

• ✔️ Secure connector fit prevents signal drop or loss during operation

• ✔️ Flexible routing for industrial, lab, and field deployment

---

📊 Specifications

• Cable Type: RG316 Low-Loss Coaxial Cable

• Connector A: BNC Male Right Angle

• Connector B: MCX Male

• Impedance: 50 Ohm

• Frequency Range: DC – 6 GHz

• Shielding: Braided Copper Shield

• Insulation: PTFE (Teflon)

• Operating Temp Range: -55°C to +200°C

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🔄 Extended Compatible Devices

Embedded RF modules, wireless routers, SDR receivers, test equipment, GPS boards, IoT controllers, signal analyzers, wireless telemetry units, baseband RF interfaces, spectrum monitors, board-to-board interconnects, compact Wi-Fi chipsets, evaluation boards, RF diagnostic tools, router extension ports, portable field RF test systems

---

🛡️ 6 Months Warranty – Reliable Quality by Netboon

Every NETBOON cable assembly is rigorously tested and backed by a 6-month warranty to ensure reliable performance and peace of mind.

---
