RG316 Coaxial Cable Assembly with TNC Male to SMA Female Right Angle Connector | Low Loss RF Jumper Cable for Antenna, Test & Wireless Applications

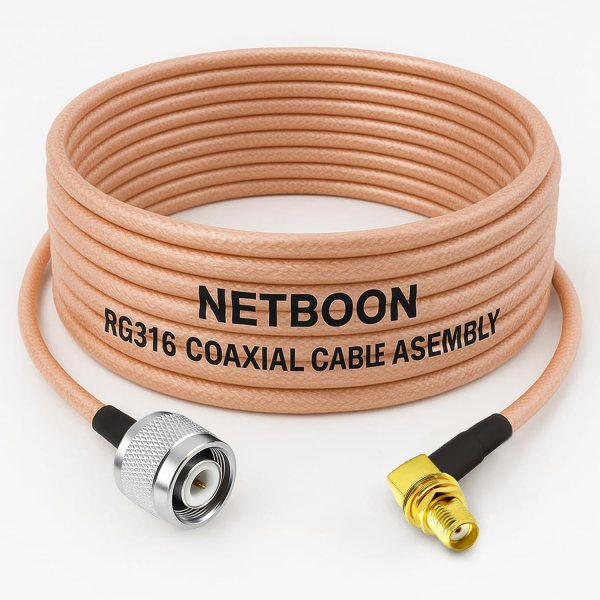

The NETBOON RG316 Coaxial Cable Assembly with TNC Male to SMA Female Right Angle Connector is designed for high-performance RF signal transmission in compact or space-restricted installations. Utilizing precision-engineered RG316 cable, this assembly ensures low signal loss, flexibility, and reliability across a broad range of wireless and RF applications.

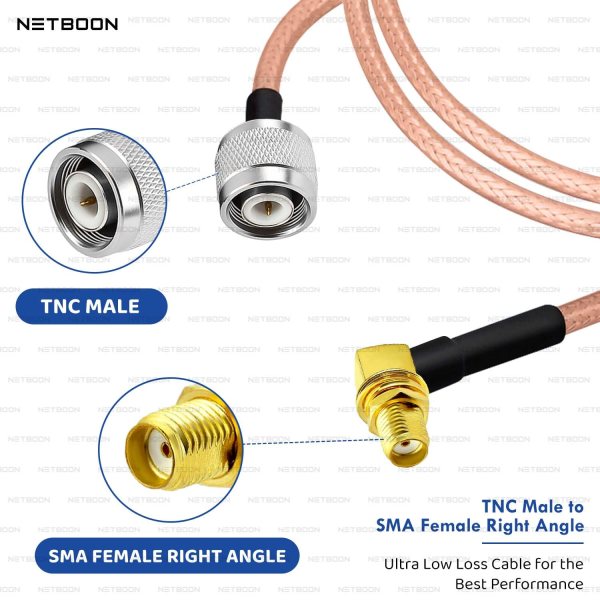

Featuring a robust TNC Male connector and a 90-degree SMA Female connector, this cable offers secure, tight-fit connections in scenarios where angled routing is essential—such as enclosed devices, test rigs, and embedded modules. Whether you’re integrating antennas, testing frequency devices, or routing RF signals in OEM designs, NETBOON cables provide dependable, interference-resistant connectivity with wide-frequency support up to 6 GHz.

---

✅ Key Features

• ✔️ High-quality TNC Male to SMA Female Right Angle Connector

• ✔️ RG316 coaxial cable optimized for RF and high-frequency signals

• ✔️ Compact and flexible design suited for tight enclosures

• ✔️ Supports frequency range up to 6 GHz

• ✔️ Double shielding ensures superior EMI protection

• ✔️ Durable gold-plated contact points for enhanced signal reliability

• ✔️ Ideal for communication systems, RF analyzers, wireless modules, test setups

• ✔️ Easy integration in embedded systems and signal routing designs

---

📊 Specifications

• Cable Type: RG316 Low Loss Coaxial Cable

• Connector A: TNC Male

• Connector B: SMA Female (Right Angle)

• Impedance: 50 Ohm

• Frequency Range: DC – 6 GHz

• Conductor Material: Silver-plated copper

• Shielding: Braided copper, PTFE insulation

• Operating Temperature: -55°C to +200°C

• Applications: Wireless antenna extension, RF testing, embedded IoT devices, communication analyzers, development boards, RF interfaces

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🔄 Extended Compatible Devices

Wi-Fi routers, RF analyzers, GSM modules, antenna testers, SDR receivers, frequency analyzers, network routers, signal processors, wireless control units, monitoring terminals, IoT baseboards, industrial RF control units, embedded telecommunication systems

---

🛡️ 6 Months Warranty – Reliable Quality by Netboon

Every NETBOON cable assembly is rigorously tested and backed by a 6-month warranty to ensure reliable performance and peace of mind.

---

🛒 Interested in Bulk and Customization Supply?

We offer discounted pricing for OEMs, resellers, and professional installers.
📧 Email: netboon15@gmail.com
📞 Call/WhatsApp: +91-6266758816 | +91-9303369506
