RG316 Coaxial Cable Assembly with TNC Male to SMA Male Right Angle Connector | RF Coax Jumper Cable for Antenna, SDR, and Test Applications

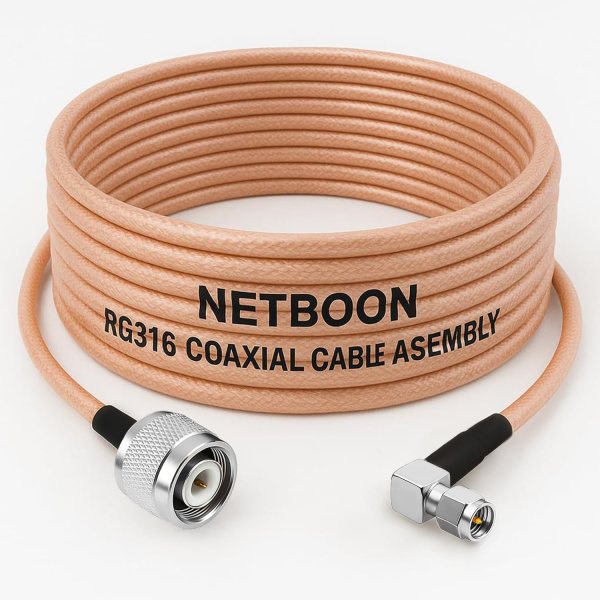

The NETBOON RG316 Coaxial Cable Assembly with TNC Male to SMA Male Right Angle Connector is engineered for high-frequency RF connectivity in compact and precision-demanding setups. Crafted using high-quality RG316 cable, it ensures minimal signal attenuation and excellent shielding, making it a trusted choice for RF test equipment, routers, embedded modules, and antenna integration.

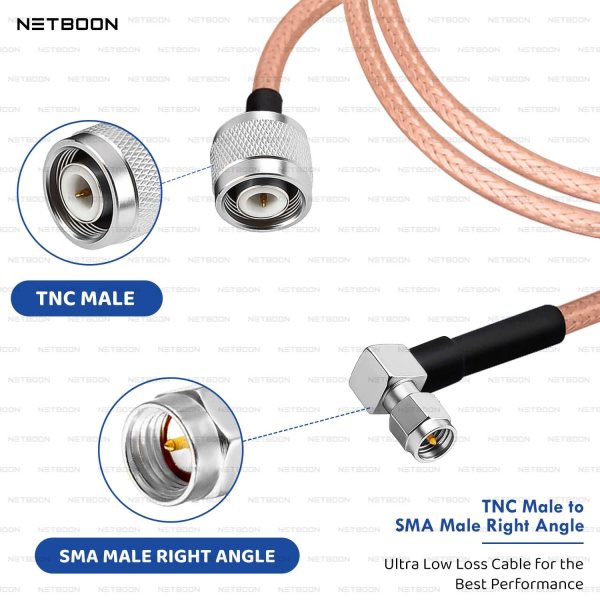

This assembly features a rugged TNC Male connector and a space-efficient 90-degree SMA Male connector, making it ideal for installations with limited clearance. Whether used in telecom systems, laboratory setups, or custom RF devices, this cable offers excellent mechanical flexibility, thermal endurance, and wide compatibility with RF systems operating up to 6 GHz.

---

✅ Key Features

• ✔️ TNC Male to SMA Male Right Angle Connector for angled routing

• ✔️ Low-loss RG316 coaxial cable with double shielding

• ✔️ Supports high-frequency signals up to 6 GHz

• ✔️ Designed for compact RF environments and embedded systems

• ✔️ Silver-coated conductor for optimal signal transmission

• ✔️ High heat resistance and excellent RF shielding performance

• ✔️ Compatible with wide range of RF communication equipment

• ✔️ Flexible construction suitable for dynamic or mobile setups

---

📊 Specifications

• Cable Type: RG316 Coaxial Cable

• Connector A: TNC Male

• Connector B: SMA Male (Right Angle)

• Impedance: 50 Ohm

• Frequency Range: DC – 6 GHz

• Shielding: Braided copper with PTFE dielectric

• Temperature Range: -55°C to +200°C

• Applications: Wireless systems, SDR radios, telecom setups, antenna interconnects, testing labs, signal routing

• Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter

---

🔄 Extended Compatible Devices

SDR receivers, Wi-Fi routers, test equipment, RF analyzers, GSM antennas, LTE modems, cellular routers, IoT boards, telecom control panels, ham radio modules, RF switches, lab instruments, custom PCBs, industrial wireless enclosures, base station testers

---

🛡️ 6 Months Warranty – Reliable Quality by Netboon

Every NETBOON cable assembly is rigorously tested and backed by a 6-month warranty to ensure reliable performance and peace of mind.

---

🛒 Interested in Bulk and Customization Supply?

We offer discounted pricing for OEMs, resellers, and professional installers.
