The NETBOON RG58 Coaxial Cable Assembly with N Male to TNC Female Bulkhead Connector is a premium-grade RF cable designed for high-performance signal transmission in wireless communication systems. With a frequency handling capacity up to 6GHz, it ensures superior connectivity and signal integrity across various RF applications.

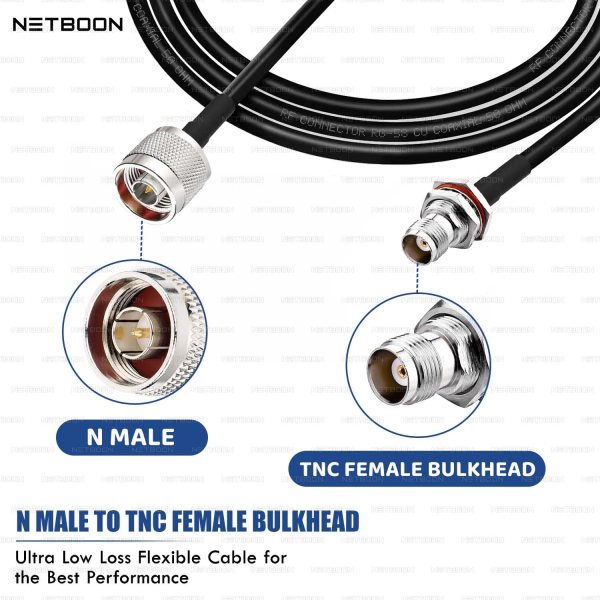

This cable features an N Male connector on one end and a TNC Female Bulkhead connector on the other, allowing secure, panel-mounted connectivity. The RG58 50 Ohm coaxial cable construction provides low signal loss and high flexibility, making it ideal for both indoor and outdoor use in tight installation spaces or demanding environmental conditions.
A perfect choice for extending connectivity between antennas, routers, base stations, and RF testing equipment where durability, shielding, and stable performance are crucial.
🟢 Key Features:
✅ Connector Type: N Male to TNC Female (Bulkhead Mountable)
✅ Cable Type: RG58 Coaxial | 50 Ohm Impedance
✅ Frequency Range: DC to 6GHz
✅ Stable Signal Transmission with Minimal Loss

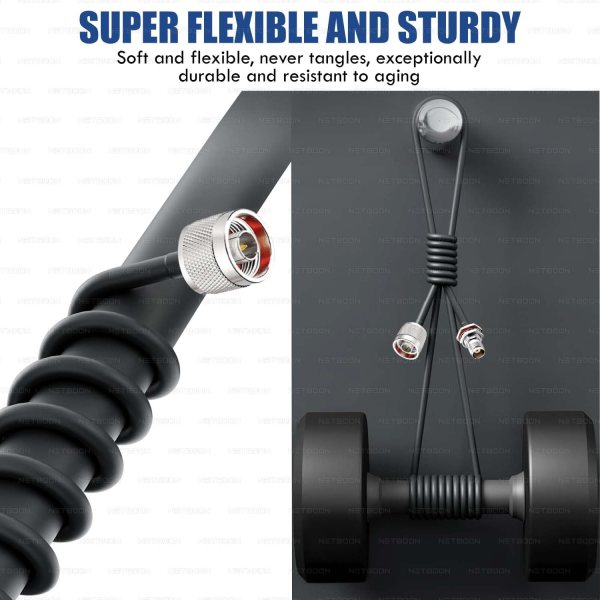

✅ Flexible Cable Structure for Easy Installation
✅ Bulkhead Design for Secure Panel/Wall Mounting
✅ Suitable for Indoor/Outdoor Applications

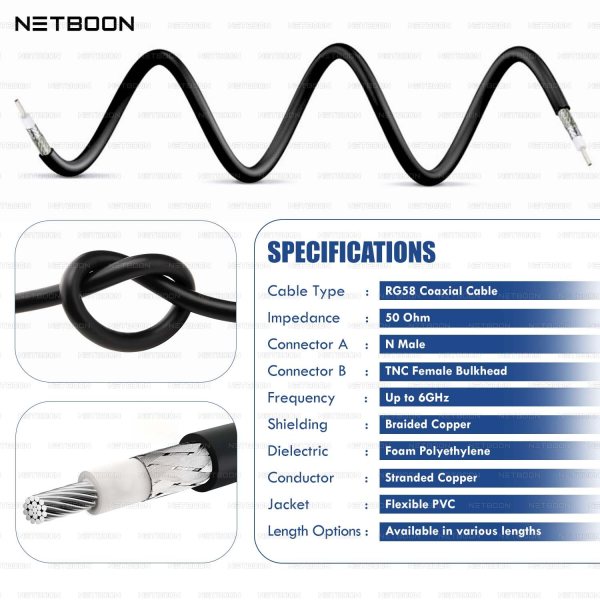

🟢 Technical & Mechanical Specifications:
Cable Type: RG58/U Flexible Coaxial
Connector A: N Male
Connector B: TNC Female Bulkhead
Impedance: 50 Ohms
Frequency Range: DC – 6GHz
VSWR: ≤ 1.3
Center Conductor: Stranded Copper
Shielding: Braided Copper
Jacket: Black PE (UV Resistant)
Minimum Bend Radius: 25 mm
Operating Temperature: -20°C to +75°C
Available Length Options: 1 Meter, 5 Meter, 10 Meter, 15 Meter, 20 Meter, 25 Meter, 30 Meter
🟢 Extended Compatible Devices:
Wireless Access Points, WiFi Routers, Antennas, Signal Transmission Units, Telecom Base Stations, RF Test Equipment, GPS Modules, Bulkhead Mount Devices, TNC-Female Panel Interfaces, Radio Transceivers, Network Devices
🟢 Warranty:
6 Months Replacement Warranty by NETBOON Each cable undergoes quality checks before dispatch.
