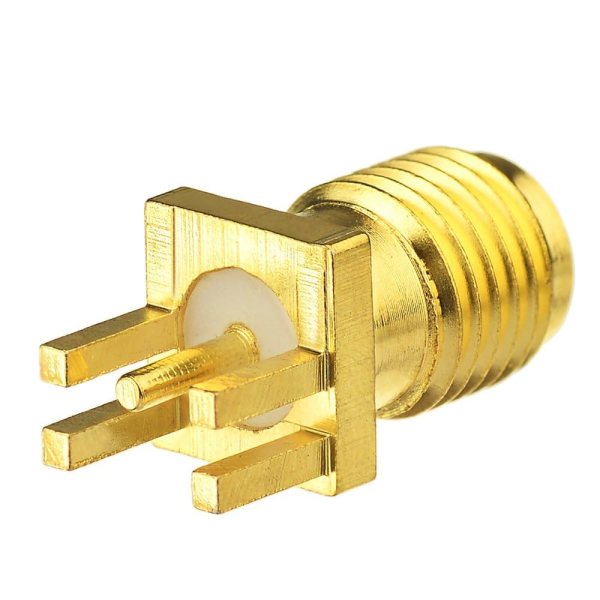

The Netboon SMA Female Edge Type PCB Mount Connector (Pack of 2) is a high-performance RF component engineered for end launch mounting on 1.0mm (0.040 inch) thick PCBs. This SMA jack (female) connector is designed for direct soldering onto the board’s edge, providing a secure and low-loss connection between PCB signal lines and coaxial cables.
Featuring a gold-plated center contact and a precision-machined brass body, this straight end-launch connector offers superior RF performance, excellent mechanical stability, and durability across demanding applications. Ideal for RF modules, prototype boards, wireless devices, and test & measurement systems.
🌟 Key Features:
✅ Connector Type: SMA Female (Jack) – Edge Mount
✅ PCB Compatibility: Designed for 1.0mm (0.040 inch) PCB thickness
✅ Mounting Style: End launch, solder-on for edge-type PCBs
✅ Orientation: Straight – Direct coaxial line interface
✅ Material: Gold-plated contact with nickel-plated brass body
✅ Impedance: 50 Ohms – Ideal for high-frequency RF use
✅ RF Performance: Supports DC to 6 GHz signal transmission
✅ Value Pack: 2 connectors for assembly, testing, or replacement
📐 Specifications:
Connector Type: SMA Female (Jack)
Mount Type: Edge mount, straight end-launch
PCB Thickness: 1.0mm (0.040 inch)
Impedance: 50 Ohms
Frequency Range: DC to 6 GHz
Material: Brass with gold-plated contacts
Orientation: Straight
Color: Gold/Silver
Quantity: Pack of 2
Installation: Solder-type
⚙️ Applications:
RF signal interface in wireless modules
IoT devices, RF evaluation boards, and prototyping
Custom RF circuit design and test equipment
Used in antenna connections, frequency analyzers, and signal routers
🛡️ Reliable Performance, Guaranteed:
Backed by Netboon’s 6-month limited functionality warranty, this connector undergoes quality checks for performance and build.
🛒 Planning for Volume or OEM Orders?
Whether you’re an engineer, OEM, or hardware startup — we provide bulk pricing, priority fulfillment, and technical consultation. 📧 Email:netboon15@gmail.com 📞 Call/WhatsApp: +91-6266758816 or +91-9303369506
📦 Package Includes:
2 × SMA Female Edge Mount End Launch Straight Connectors (for 1.0mm PCB)
