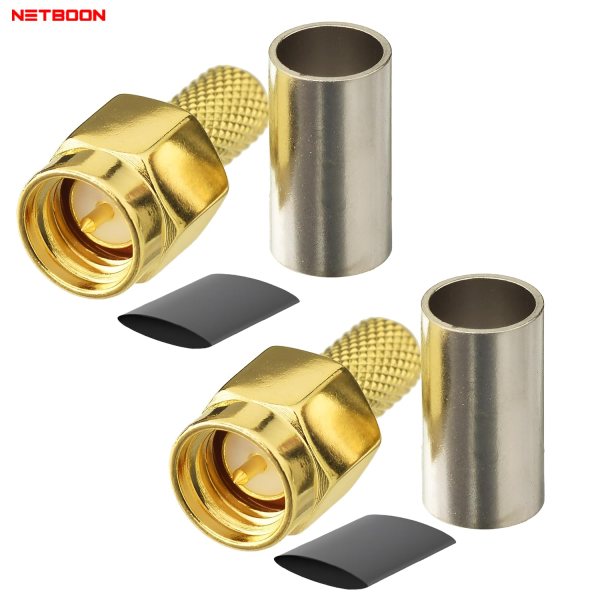

SMA Male Crimp Connector for LMR100 Coaxial Cable – PACK OF 2
399₹ – 1199₹
PREMIUM CONNECTOR: SMA male crimp connector is manufactured from weatherproof, durable, anti-corrosive, dustproof gold plated brass along with a nickel ferrule. Male crimp connector supports a wide bandwidth range upto 6GHz with minimum data loss. SMA plug crimp cable connector features PTFE dielectric insulator coating material which provides an effective insulation resistance of ≥50 ohm. Premium quality coaxial cable connector is rigid in nature and highly reliable in functioning, specially designed for industrial grade coax cables. Brass material enhances faster data transmission rate as well as amplifies the performance of compatible devices. Central pin tightly hold the cable to strengthen its connectivity with compatible device. Crimp connector is used to create custom-length cables for diverse RF applications. SMA crimp connector is compatible with LMR100, RG174, RG316, RG188, 188A coaxial cable.
PACKAGE: 1×Pair of SMA Male crimp connector.

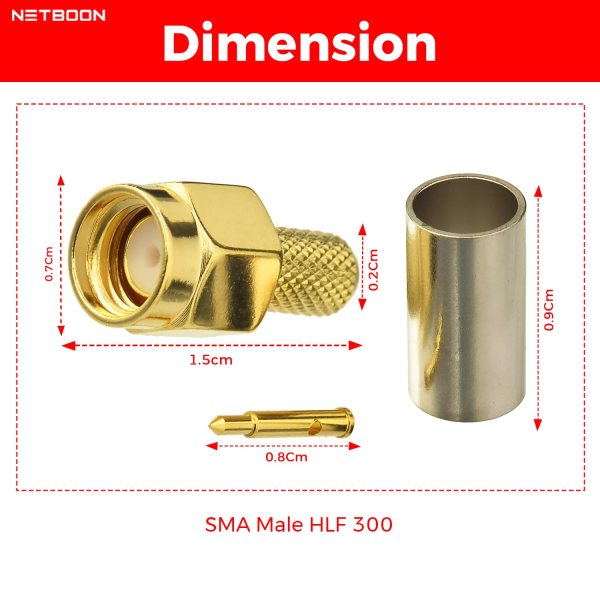

ELECTRICAL & MECHANICAL PARAMETERS
VSWR: ≤1.15
Insulator: PTFE (Teflon)
Frequency Range: DC-6GHz
0-3GHZ Attenuation: ≤ 0.1dB
Connector Gender: SMA-Male
0-6GHZ Attenuation: ≤ 0.12dB
Dielectric Resistance: ≥50 ohm
Body material: Gold-plated brass
Characteristic impedance: 50ohm
Operating Frequency: 0-6000MHz
Centre conductor: Phosphor copper
Operating Temperature: -40ºC∼ +85ºC
Compatible: Compatible with RG174,316,188,188A,LMR100 cable.
Dielectric Withstanding Voltage: ≥1000V RMS, 50Hz at sea level.
WARRANTY: 6months manufacturing warranty. For any queries please reach us at+91-9893014112.
| PACK OF | 2, 4, 6, 8, 10 |
|---|---|
| VSWR | ≤1.15 |
| Insulator | PTFE (Teflon) |
| Frequency Range | DC-6GHz |
| 0-3GHZ Attenuation | ≤ 0.1dB |
| Connector Gender | SMA-Male |
| 0-6GHZ Attenuation | ≤ 0.12dB |
| Dielectric Resistance | ≥50 ohm |
| Body material | Gold-plated brass |
| Characteristic impedance | 50ohm |
| Operating Frequency | 0-6000MHz |
| Centre conductor | Phosphor copper |
| Operating Temperature | -40ºC∼ +85ºC |
| Compatible | Compatible with RG174,316,188,188A,LMR100 cable. |
| Dielectric Withstanding Voltage | ≥1000V RMS, 50Hz at sea level. |
| Keywords | SMA male crimp connector for LMR100, RG174, 188, 188A, 316, premium connector, low transmission loss, high grade brass material, durable, weatherproof, bets price, 50ohm impedance RF devices, 6GHz wide bandwidth range, low VSWR. |
Only logged in customers who have purchased this product may leave a review.
