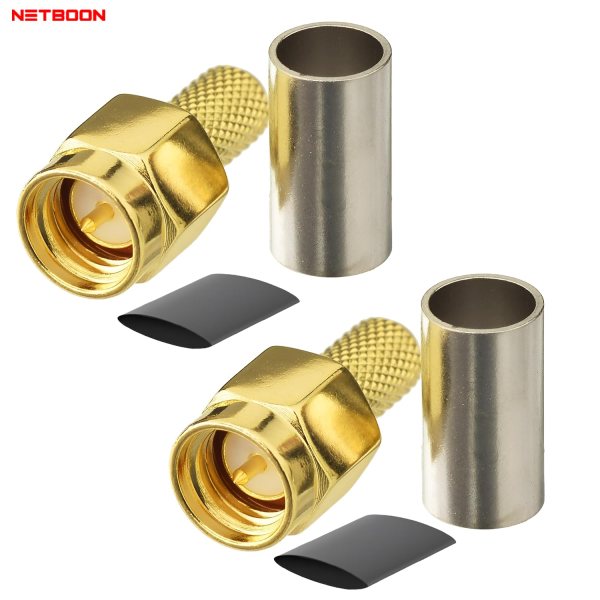

SMA Male Crimp Connector for LMR 300, HLF 300 Coaxial Cable – PACK OF 2
399₹ – 1199₹
PREMIUM CONNECTOR: SMA male connector is manufactured from high grade gold plated brass material which enhances the durability of RF connector. Connector is highly suitable for LMR300, HLF300 coaxial cable. Connector is designed and manufactured for industry standard transmission cables. Sturdy connector features PTFE Teflon insulator material and offers outstanding 6GHz wide bandwidth range. Connector connects different cables with your device. Minimum transmission loss is a significant feature of this connector. Supports devices and cables having 50ohm impedance.

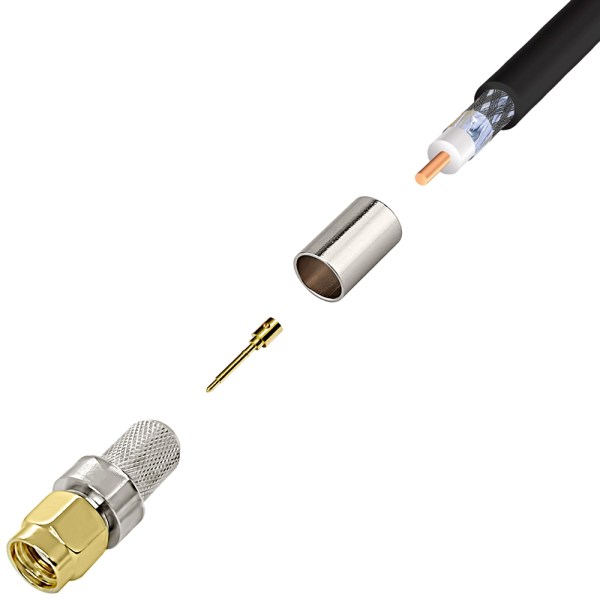

INSTALLATION: Remove the outer jacket of coax cable and fix the connector with its core metal, then crimp the connector with the help of crimping tool and then plug it on your device. For any queries please reach us at+91-9893014112.

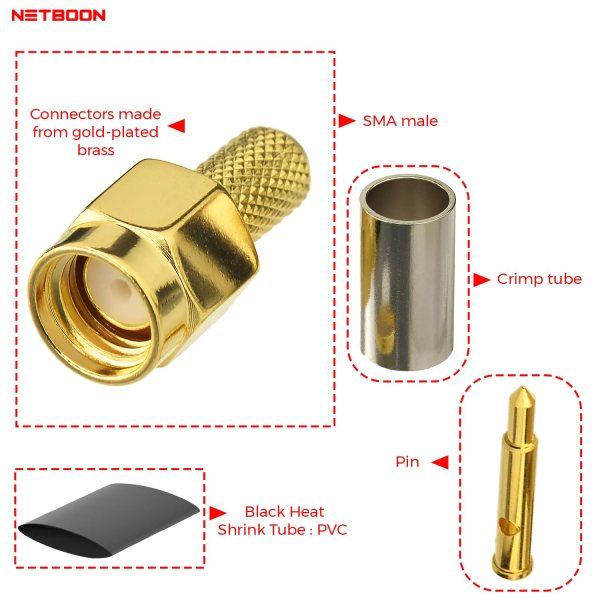

PACKAGE: 1×Pair of SMA Male crimp connector.
ELECTRICAL & MECHANICAL PARAMETERS
VSWR: ≤1.15
Insulator: PTFE (Teflon)
Frequency Range: DC-6GHz
0-3GHZ Attenuation: ≤ 0.1dB
0-6GHZ Attenuation: ≤ 0.12dB
Connector Gender: SMA-male
Durability: Mating cycles ≥500
Body material: Gold-plated brass
Characteristic impedance: 50ohm
Operating Frequency: 0-6000MHz
Centre conductor: Phosphor copper
Dielectric Resistance: ≥5000M ohm
Compatible: Compatible with LMR300
Operating Temperature: -40ºC∼ +85ºC
Environmental Friendly: RoHS compliance
Contact Resistance: Center contact ≤1m ohm
Dielectric Withstanding Voltage: ≥1000V RMS, 50Hz at sea level
WARRANTY: 6 months manufacturing warranty. For any queries please call or WhatsApp us at+91-9893014112.
| PACK OF | 2, 4, 6, 8, 10 |
|---|---|
| VSWR | ≤1.15 |
| Insulator | PTFE (Teflon) |
| Frequency Range | DC-6GHz |
| 0-3GHZ Attenuation | ≤ 0.1dB |
| 0-6GHZ Attenuation | ≤ 0.12dB |
| Connector Gender | SMA-male |
| Durability | Mating cycles ≥500 |
| Body material | Gold-plated brass |
| Characteristic impedance | 50ohm |
| Operating Frequency | 0-6000MHz |
| Centre conductor | Phosphor copper |
| Dielectric Resistance | ≥5000M ohm |
| Compatible | Compatible with LMR300 |
| Operating Temperature | -40ºC∼ +85ºC |
| Contact Resistance | Center contact ≤1m ohm |
| Dielectric Withstanding Voltage | ≥1000V RMS, 50Hz at sea level |
| Keywords | Gold plated brass, SMA Male Crimp Connector for LMR 300, HLF 300 Coaxial Cable, premium, best quality, 6GHz wide bandwidth, very minimum transition loss, durable, weatherproof, anti corrosive, light weight. |
