Photovoltaic System Y Type Parallel Connectors for Two Solar Panels Installation

Netboon has evolved to be the most trusted manufacturer, supplier, dealer, trader and exporter of wide varieties of solar products and accessories. Solar two way connector is designed to meet the demands of solar systems, highly efficient for photovoltaic installations and ensure optimal signal transmission. 2 in 1 solar connector is precision engineered, constructed using PPO superior material for years of reliable services. 2-way solar system jointer has IP 68 waterproof degree and flammability rating UL94V-0, to perform stable in different environments, with an operating temperature range of -40°C to +85°C.

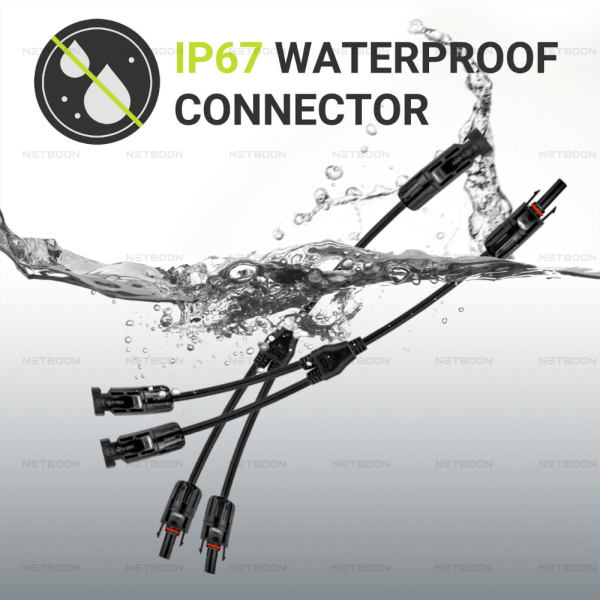

SOLAR Y TYPE CONNECTORS- Solar Y Type connector is used to connect two solar panels together. Two way connector is IP 68 waterproof and dustproof, allows you to use in any climatic conditions.

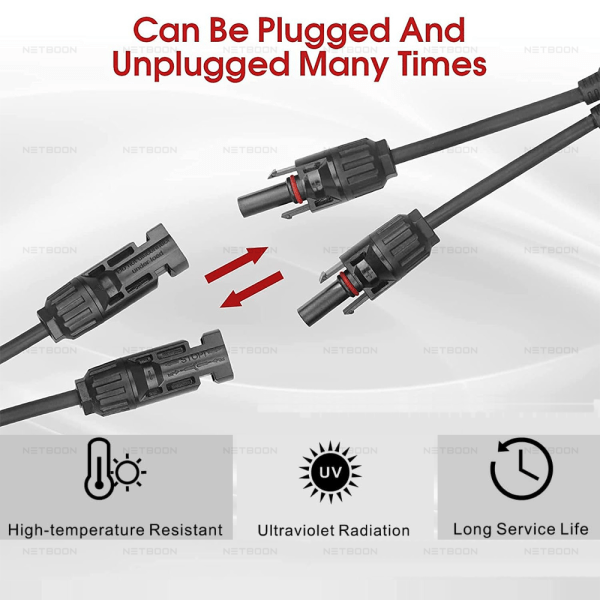

EASY INSTALLATIONS: 2 in 1 parallel connector has built-in lock mechanism, you have to only press the fingers of the two sides of the male connector, you can easily install and remove it without using any tool and without causing any damage to the plugs.

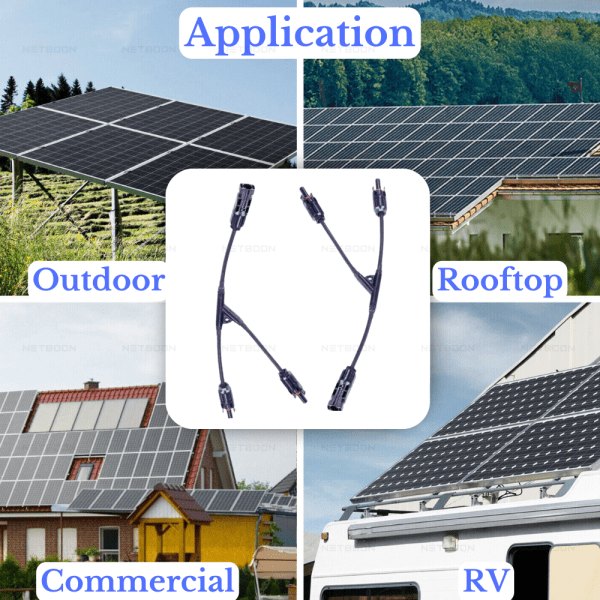

COMPATIBLE APPLICATIONS: Solar 2 way connector is usually designed for connecting photovoltaic solar systems but it is also used for solar generator, inverter, charger, UPS battery packs, storage batteries, power station, lawn mower, yachts and so on.

PACKAGE LIST– 1 Pair of Y Type Connector

ELECTRICAL INFO–

Connector side 1: –
Connector side 2: +
Connector side 3: +
Protection class: II
Working current: ≤30A
Degree of Waterproof: IP68
Rated voltage: 1000/1500 Vdc
Material: PPO Poly (Phenylene oxide)
Operating Temperature range: -40°C~+85°C

QUALITY SERVICE GUARANTEE– Don’t worry about the quality of our products, we provide 6 months warranty and 5 days money back guarantee to our trusted customers.

If you are not satisfied with the product or have any issue, you can contact us at NETBOON CUSTOMER SUPPORT- +91-6266758816 or +91-9303369506
