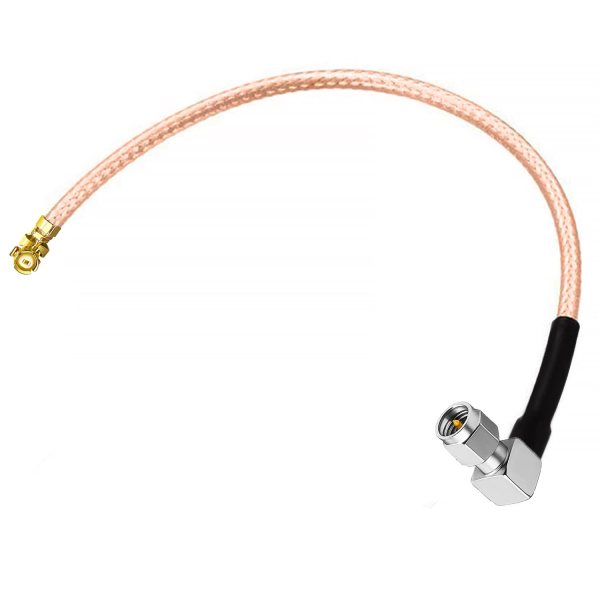

NETBOON RG178 Cable with UFL/IPEX to SMA Male Right Angle Connector | Flexible Low Loss RF Cable Assembly for IoT, WiFi, GPS & Wireless Devices

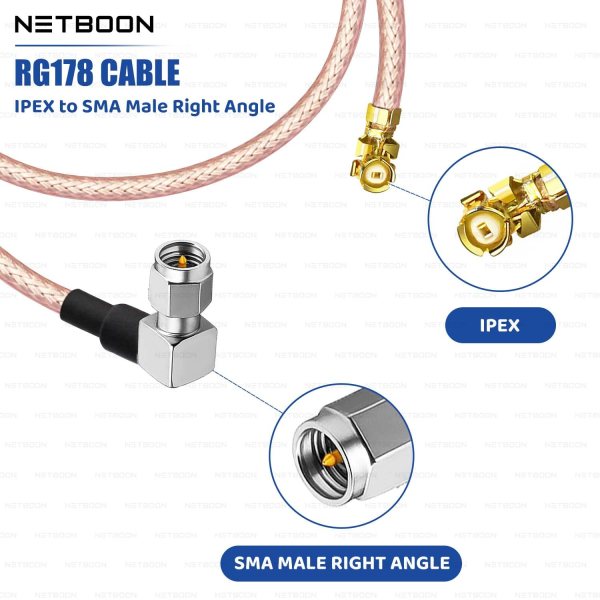

The NETBOON RG178 Cable with UFL/IPEX to SMA Male Right Angle Connector is a professional-grade RF interconnect designed for compact and high-performance wireless applications. Built with ultra-thin RG178 coaxial cable, this assembly offers flexibility, durability, and reliable performance in space-constrained installations where standard connectors may not fit.

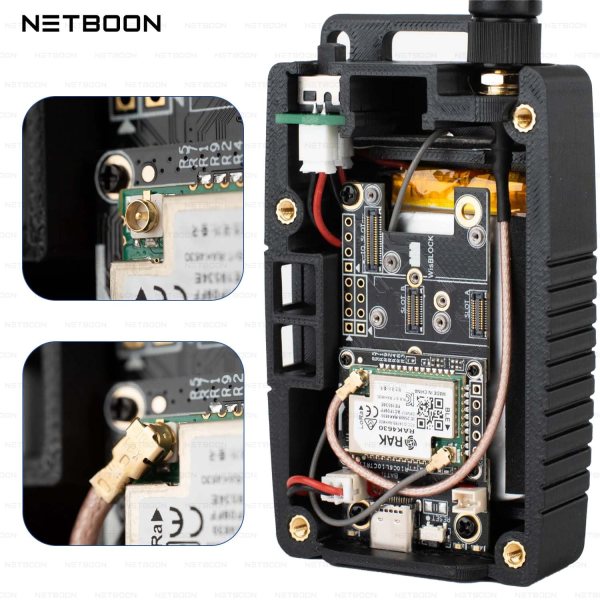

It features a UFL/IPEX connector on one end for direct connection to embedded IoT modules, WiFi cards, or GPS boards, and a SMA Male Right Angle connector on the other, providing a secure and space-efficient interface to antennas or RF devices. The right-angle design minimizes cable stress in tight enclosures, making it ideal for portable and embedded systems.

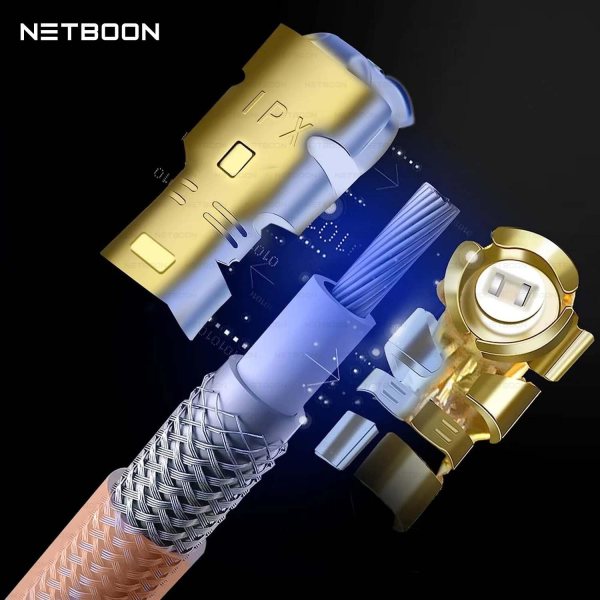

Constructed with a silver-coated copper-clad steel conductor, fluoropolymer dielectric insulation, and tinned copper braid shielding, the cable ensures excellent electrical performance with minimal signal loss and strong resistance against interference. The FEP outer jacket is highly flexible, heat-resistant, and designed to withstand harsh installation environments.

Supporting frequencies up to 7 GHz, this assembly is suitable for IoT devices, M2M communication, WiFi (2.4/5 GHz), Bluetooth, GPS/GNSS modules, test instruments, and embedded wireless applications that require both compact size and high reliability.

---

🟢 Key Features:

• ✅ UFL/IPEX to SMA Male Right Angle Connector Configuration

• ✅ Ultra-Thin Flexible RG178 Coaxial Cable

• ✅ Frequency Range: DC to 7 GHz

• ✅ Right Angle Design – Perfect for Space-Constrained Setups

• ✅ High Shielding Against Electromagnetic Interference

• ✅ Heat-Resistant FEP Jacket for Long Service Life

---

🟢 Technical & Mechanical Specifications:

• Cable Type: RG178 Low Loss RF Coaxial Cable

• Connector A: UFL/IPEX

• Connector B: SMA Male Right Angle

• Impedance: 50 Ohms

• Frequency Range: DC to 7 GHz

• VSWR: ≤ 1.5

• Conductor: Silver-Coated Copper-Clad Steel

• Shielding: Tinned Copper Braid

• Dielectric: Fluoropolymer Insulation

• Outer Jacket: FEP (Fluorinated Ethylene Propylene)

• Temperature Range: -40°C to +85°C

• Available Length Options: 15 CM, 30 CM

---

🟢 Compatible Devices:

IoT Boards, GPS/GNSS Modules, WiFi Cards, Bluetooth Devices, Development Kits, Embedded Wireless Systems, Communication Equipment, Test Instruments, SMA Antenna Interfaces

---

🟢 Warranty Information:

6 Months Warranty – Quality Assured by NETBOON
Each cable is rigorously tested for electrical integrity and backed by our reliability assurance.

---

🟢 Bulk & OEM Inquiry:

Need bulk quantities or special lengths for your project?
📞 Call/WhatsApp: +91-6266758816, +91-9303369506
📧 Email: netboon15@gmail.com
